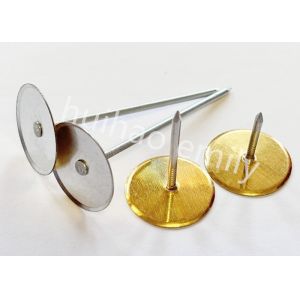

38mm galvanized steel duct liner cup head pins with gold paper
Quick details of 12 ga galvanized steel duct liner cup head pins
A fabricated part made up of a weld pin and a staked on retaining
washer. Cup Head Pins are used
for securing insulation and as a hook-less lacing anchor to secure
insulation inside fabricated blankets.
Cup Heads are widely accepted as labor-saving fasteners in the
thermal and acoustical insulation
markets for use in industrial and commercial applications.
product name :38mm galvanzied steel duct liner cup head pins , Material :galvanzied steel Base size :30mm Base type :with gold paper Pin diameter:2.7mm Pin length:25mm,38mm,75mm,115mm have in stock ,other size to be
request |
 |
other type of cup head pins
 | 3.4mm cup head pins
material :galvanized steel base size :25mm in common , 30mm to be request base type:with paper or without paper Pin diameter :3.4mm Pin length :25mm to be 75mm |
 |
2.7 mm cup head pins with paper
material :galvanized steel
base size :30mm in common
base type:with paper
Pin diameter :2.7mm
Pin length :25mm ,38mm,75mm,115mm in common ,120-210mm is to be
request |
 |
2.7mm cup head pins without paper
material :galvanized steel
base size : 30mm in common
base type: without paper
Pin diameter :2.7mmmm
Pin length :25mm to be 75mm |
 |
copper coated cup head pins
material :galvanized steel
base size :30mm is in common
base type:with paper or without paper
Pin diameter :2.7mm ,3.4mm
Pin length :25mm,38mm,75mm,115mm in in common ,120-210 to be
request |
Cup head pin installation:
Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil
and any other loose matter.
2.Remove the protective release paper taking care not to touch the
adhesive.
3.Place the hanger in the required position and press the base
against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with
fastening clips but maximum strength
of adherence is achieved after 24 hours
Cup head weld pin package:
Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs
in carton on pallet
800/1000/15000/2000 in a drum on the pallet
Delivery :for big you choose by sea
for small order or agercy order ,you can choose express by
DHL,Fedex ,UPS ,ect
we can also supply door to door service by sea ,by air
Insulation fasteners including a lot of terms as follows:
HUIHAO company is a insulation fasteners/insulation anchors
manufacturing company,we produce
all kinds of insulation pins and washers.can make mold according
your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
Bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins solar panel mesh clip
all kinds of self locking washers, Dome caps.
