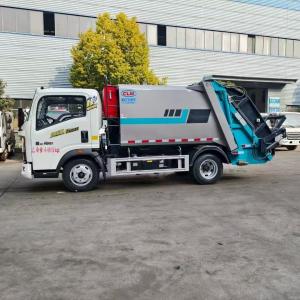

HOWO Waste Removal Compressor Compression Compressed Basement
Garbage Truck
HOWO (SINOTRUK)
HOWO is a popular truck series manufactured by SINOTRUK (China
National Heavy Duty Truck Group Co., Ltd.). These chassis are
widely used for various specialized vehicles, including garbage
trucks, due to their robust construction and engine power.
Compressor / Compression / Compressed
Compression Garbage Truck (also known as a compactor truck) is the
type of vehicle. Its primary feature is the hydraulic compression
system that significantly reduces the volume of the garbage once
it's loaded.
High Compaction Ratio: This system allows the truck to carry much
more waste in a single trip (often increasing capacity by up to 3
to 7 times compared to non-compacting trucks), saving time and
fuel.
Sealed Design: The entire body is typically sealed, and the
compression process channels sewage water into a dedicated
collection tank, which helps prevent secondary pollution (like
leakage) during transportation.
Waste Removal / Garbage Truck
This simply describes the function of the vehicle, which is to
collect, compact, and transport various types of waste (municipal
solid waste, commercial waste, etc.).
They are available in various sizes, with body volumes ranging from
small (e.g., 5 cubic meters) to large (e.g., 20 cubic meters or
more).
Basement
While the main HOWO chassis are often large, the term "basement"
might imply a need for a truck with a smaller profile, lower
height, or better maneuverability to operate in areas with
restricted clearance, such as underground parking garages or
building basements common in high-density urban areas for waste
collection.
Manufacturers often offer different chassis and body designs (like
a 4x2 drive model with a smaller capacity) that are better suited
for navigating narrow streets and low-clearance zones.
garbage truck is composed of sealed garbage compartment, hydraulic
system and operating system.Vehicle is fully sealed type,
compression, to dump all, compression in the process of sewage into
the water, more thoroughly solve the secondary pollution in the
process of waste transportation issues, to avoid the inconvenience
to people, the key parts adopt imported components, high pressure,
good sealing, convenient operation, safety, etc.Optional rear
hanging bucket turning mechanism or garbage bucket turning
mechanism.
HOWO Waste Removal Compressor Compression Compressed Basement
Garbage Truck Technical sheet :
| Feature | Specification Range | Note |
|---|
| Chassis Brand | SINOTRUK HOWO Light Truck Series | Reliable for medium-duty applications. |
| Driving Type | 4*2 (Two axles, rear-wheel drive) | Optimal for maneuverability. |
| Overall Dimensions (L x W x H) | 6450∼7200*2250∼2400*2600∼2800 mm | Crucial for basement access (height). |
| Gross Vehicle Weight (GVW) | 7300∼12500 kg | Varies significantly by specific model. |
| Curb Weight | 3600∼6500 kg | Unloaded weight of the vehicle. |
| Wheelbase | 3360∼3800 mm | Short wheelbase aids in tight turning radius. |
| Max. Driving Speed | ≈90 km/h | |
| Feature | Specification Range | Note |
|---|
| Engine Brand | YUNNEI, YUCHAI, or equivalent light-duty diesel engine | Common engines for this truck class. |
| Horsepower | 116∼140 HP | Lower power for smaller chassis and urban speed limits. |
| Emission Standard | Euro 2 / Euro 3 / Euro 4 (varies by market) | |
| Transmission | Manual, 5F+1R or 6F+1R | Manual with 5 or 6 forward gears. |
| Tire Specification | 7.00R16 or 7.50R16 | Smaller tire size contributes to lower overall height. |
| Brake System | Dual circuit compressed air brake + Engine exhaust auxiliary brake | Standard safety features. |
| Feature | Specification Range | Note |
|---|
| Effective Garbage Body Volume | 5 CBM∼8 CBM | Total capacity of the waste compartment. |
| Compaction Ratio | 1:2.5∼1:4 | Waste volume reduction (e.g., 1 CBM of loose waste becomes 0.25
CBM). |
| Garbage Compact Density | ≈0.9±0.05 T/m3 | Density of the compacted waste. |
| Hydraulic System Working Pressure | 16 MPa | Pressure driving the compaction plate. |
| Control System | Electro-Hydraulic Controlled (+ Manual Emergency Operation) | Often includes an imported PLC for automated cycles. |
| Type of Compactor | Fill, Push, and Bi-directional Compression | Standard mechanism for rear-loader compactors. |
| Loading Cycle Time | ≤25 s or ≤40 s | Time to load and compress one batch of waste. |
| Discharge Cycle Time | ≤45 s or ≤60 s | Time to push out the entire contents at the disposal site. |
| Sewage Water Tank | Yes (Front and/or Rear Tank) | Sealed system to collect liquid runoff and prevent leakage. |
| Loading Mechanism | Rear-loading with various options:- Hanging Trash Bin Lifter (for 120/240 L bins)
- Fully Sealed Bucket Lifter
| Allows use of different collection bins. |
| Technical parameters For HOWO 20cbm compactor Garbage Truck |
|---|
| Production date | Brand new |
| Chassis Model | HOWO |
| Truck Size | 10150X2500X3300mm |
| Truck Weight | 25000kgs |
| Glossy Weight | 10870kgs |
| Warranty time | 12 months |
| Driving type | 6 X 4, Left Hand Drive |
| Gearbox | FAST 8 speed |
| Axle | 5T/10T Double |
| Wheelbased | 3800mmmm |
| Tire | Quantity | 10 tires and 1 spare tire |
| Specification | 11 |
| Engine | Model | 141 |
| Brand | Cummins |
| Fuel type | Diesel |
| Displacement | 6.2L |
| Emission standard | Euro 3 |
| Horsepower | 141HP |
| Cylinder arrangement form | Line |
| Cylinder quantity | 6 |
| Maximum torque (N.m) | 2300rpm |
| Truck body | Truck capacity | 8cbm |
| Body Material | Q345 High Strength Carbon Steel |
| Thickness | Side :5mm Bottom :6mm |
HOWO Waste Removal Compressor Compression Compressed Basement
Garbage Truck details :
Design for Low Clearance: The "Basement" designation strongly
implies a lower overall height compared to standard HOWO garbage
trucks, allowing it to navigate underground facilities.
Full Sealing: The vehicle body is generally fully sealed to prevent
leakage of waste and sewage, effectively solving the "secondary
pollution" issue during transport, which is crucial in a confined
basement environment.
Compaction System: It utilizes a compression system (often
rear-loading) to crush and compress the waste, significantly
increasing the loading capacity (compression ratio is often ≈ 3:1
to 4:1).
Operation: Features Electrically Controlled Hydraulic (PLC) +
Manual Hydraulic control for loading, compaction, and discharge.
Operations can often be performed from the cab or an external
control panel.
Sewage Collection: Equipped with dedicated sewage water tanks
(front and rear) to collect liquid squeezed out during the
compression process.
Typical Technical Specifications (Based on smaller/low-profile HOWO
models)
About Chengli Special Automobile Co., Ltd
Location: Headquartered in Suizhou City, Hubei Province, China. Suizhou is
often referred to as the "City of Special Purpose Trucks."
Establishment: Founded in 2004.
Scale: It is a massive enterprise within the CLW Group, holding rankings
such as one of China's Top 500 Private Enterprises and a National
High-tech Enterprise.
Business Model: Primarily a manufacturer and exporter of a wide range of custom
and specialized vehicles.
- Sanitation Vehicles: Garbage compactor trucks, sewage suction
trucks, road sweeper trucks.
- Tankers: Fuel tanker trucks, LPG tanker trucks and storage tanks,
water sprinkler/bowser trucks.
- Construction & Utility: Truck-mounted cranes, dump trucks, aerial
work platform trucks.
- Emergency Vehicles: Fire fighting trucks, ambulances,
wrecker/towing trucks.
4. International Strategy
Customization: They emphasize the ability to tailor vehicles to
meet specific international client requirements, including
different steering types (LHD/RHD) and local road or regulatory
standards.
After-Sales Support: Chengli highlights its commitment to providing
overseas after-sales service, including technical training,
installation guidance, and spare parts distribution to ensure
long-term usability.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an
important branch of CLW group with registered capital 100,000,000
RMB(14 millions US Dollars) and total capital 6,000,000,000(840
millions US Dollars).
Chengli Special Automobile Co., Ltd Overseas Market
Export Volume: Chengli products are exported to over 80 countries and regions
globally.
Annual Export Revenue: The company has reported significant annual export sales,
indicating a strong international presence.
Market Share: Its products, such as sanitation trucks and fuel tanker trucks,
hold a strong and important share in the international market,
building on their leadership position in the domestic Chinese
market.
Trucks from Chengli Special Automobile Co., Ltd have been sold to
more than 29 provinces in China and more than 80 overseas countries
and regions in Asia, Africa, South America, middle east and so on,
such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar,
Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia,
Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia,
Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina
and also truck body for client drawing
