P Type , InP( Indium Phosphide) Substrate , 3”, Dummy Grade

P Type , InP( Indium Phosphide) Substrate , 3”, Dummy Grade

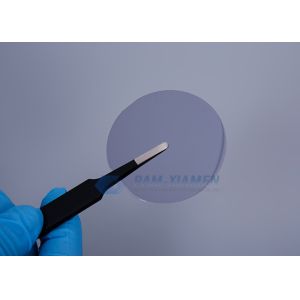

PAM-XIAMEN provides single crystal InP(Indium phosphide) wafer for micro-electronic ( HBT/ HEMT ) and opto-electronic industry ( LED / DWDM / PIN / VCSELs ) in diameter up to 6 inch. Indium phosphide ( InP ) crystal is formed by two elements , Indium and Phosphide , growth by Liquid Encapsulated Czochralski ( LEC ) method or VGF method . InP wafer is an important semiconductor material which have superior electrical and thermal properties, InP wafer has higher electron mobility, higher frequency, low power consumption , higher thermal conductivity and low noise performance . PAM-XIAMEN can provide epi ready grade InP wafer for your MOCVD & MBE epitaxial application .

Please contact our engineer team for more wafer information.

P Type, InP Substrate, 3”, Dummy Grade

What is Indium Phosphide?

As we touched on in the introduction, Indium Phosphide is a semiconductor made of indium and phosphorus. It is used in high power and high-frequency electronics and has a high electron velocity. In fact, the electron velocity of InP is significantly higher than other more common semiconductors such as Silicon and Gallium Arsenide. It is also found in opto-electronic devices such as laser diodes.

Basic Parameters

Uses

InP is used in high-power and high-frequency electronics[citation needed] because of its superior electron velocity with respect to the more common semiconductors silicon and gallium arsenide.

It was used with indium gallium arsenide to make a record breaking pseudomorphic heterojunction bipolar transistor that could operate at 604 GHz.

It also has a direct bandgap, making it useful for optoelectronics devices like laser diodes. The company Infinera uses indium phosphide as its major technological material for manufacturing photonic integrated circuits for the optical telecommunications industry, to enable wavelength-division multiplexing applications.

InP is also used as a substrate for epitaxial indium gallium arsenide based opto-electronic devices.
