30 Microns Polymer Thin Films Three Layers Excellent Bonding Strength

    Buy cheap 30 Microns Polymer Thin Films Three Layers Excellent Bonding Strength from wholesalers

    Buy cheap 30 Microns Polymer Thin Films Three Layers Excellent Bonding Strength from wholesalers
    • Buy cheap 30 Microns Polymer Thin Films Three Layers Excellent Bonding Strength from wholesalers

    30 Microns Polymer Thin Films Three Layers Excellent Bonding Strength

    Ask Lasest Price
    Brand Name : PLG
    Model Number : AF1030
    Payment Terms : L/C, T/T
    Supply Ability : 260 Tons/Month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

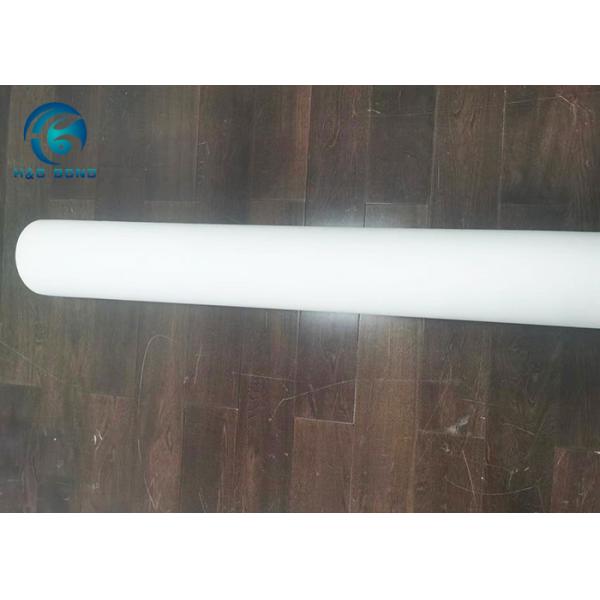

    30 Microns Polymer Thin Films Three Layers Excellent Bonding Strength

    Grade:AF1030


    Product name:Excellent Bonding Strength Adhesive Films For Alumunium Composite Panel Films


    Physical Properties:


    ItemUnitTesting Standard

    Thickness

    30 microns

    Remark
    Densityg/cm3ASTM D15050.93
    Tensile StrengthMPaASTM D63827
    Elongation at Break%ASTM D638>400
    Peel StrengthN/mmGB/T 2790-1995>5
    WidthMmGB/T 6673-1986±5
    ThicknessMmGB/T 6672-1986±0.002

    Decriptions


    The adhesive film for aluminum composite panels (ACP) and other metal plastic composite products. It is based on the comprehensive research of domestic and overseas aluminum adhesive, combined with the independent intellectual property rights. The polymer film is a high-performance film made of scientific formula design and precise process control.

    AF1030 adhesive film is three layers film with 35% adhesive resins,it has excellent pulverization effect with good peel strength. And all the raw materials are virgin,for which ensure the products quality stable.


    Application


    AF1030 adhesive film is widely for thin aluminium composite panel and partial panels and decoration panels, it’s better to used for the aluminium coil thickness 0.12-0.2 mm of the ACP.


    Advantages


    a. Excellent bonding strength

    b. Excellent resistance to Acid and Alkali and high UV resistance

    c. Good anti-aging and long-lasting bonding performances

    d. Suitable for normal aluminum composite panels

    Remark: These are typical properties only and are not to be regarded as sales specifications

    Specifications:


    Width: 50mm-1600mm (Customization available)

    Length: 2500m/roll or customization


    Processing Suggestions :

    Adhesive Layer Structure: AL+AF1030+PE+AF1030+AL

    Bonding Temperature: 145°C-170°C (Actual Temperature of the

    Equipment)


    Packages and Storage


    1.12 Rolls/Pallet, 60-80 KG/Roll (Customization available);

    2.Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.
