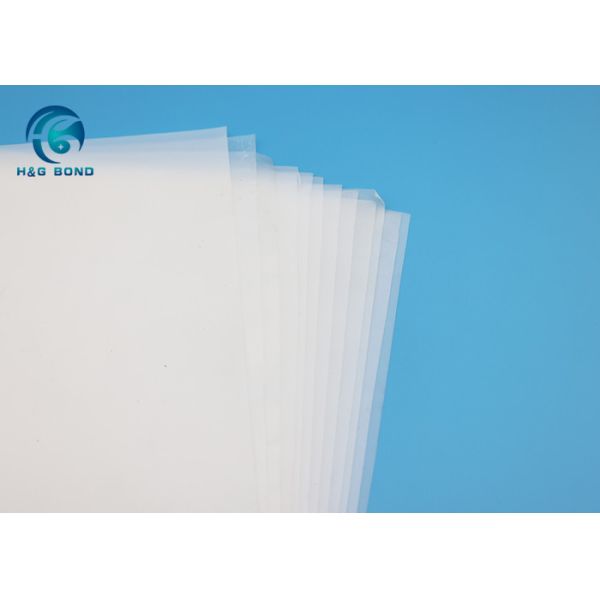

40 Microns Polymer Thin Films For Alumunium Composite Panel

Grade:AF1040

Product name:Excellent Bonding Durability Hot Melt Adhesive Films For Alumunium Composite Panel

Application

AF1040 PE adhesive film is widely for thin aluminium composite panel and partial panels, it’s better to used for the aluminium coil thickness 0.25-0.45 mm of the ACP.

Physical Properties:

Decriptions

Polymer adhesive film, commonly known as hot melt adhesive film or polymer film. For bonding metal to plastic, metal to metal and metal to other materials. Color is clear or white. It is solid at room temperature, and is an adhesive that fully infiltrates and reacts with the basic materials after being heated and melted. With the advancement of technology and the innovation of new materials, it can be used as a substitute for glue in many applications.

AF1040 adhesive film is three layers film with 50% adhesive resins,it has excellent pulverization effect with good peel strength. And all the raw materials are virgin,for which ensure the products quality stable and excellent processablity.

Advantages

a. Excellent bonding strength

b. Excellent resistance to Acid and Alkali and high UV resistance

c. Good anti-aging and long-lasting bonding performances

d. Suitable for normal aluminum composite panels

Specifications:

Width: 50mm-1600mm (Customization available)

Length: 2500m/roll or customization

Processing Suggestions :

Adhesive Layer Structure: AL+AF1040+PE+AF1040+AL

Bonding Temperature: 145°C-170°C (Actual Temperature of the

Equipment)

Metal Surface: Phosphating or chromizing treatment and pre-degreasing treatment can avoid dust pollutants.

Packages and Storage

1.12 Rolls/Pallet, 60-80 KG/Roll (Customization available)；

2.Keep in a dry cool place. Avoid direct sunlight, ventilation, and moisture. The storage period at room temperature is 12 months. If the film color changes and elongation is found to decrease by 50%, do not use it.

Remarks: The above information and technical data are based on our existing product knowledge and experience. We do not guarantee the above content and do not assume legal responsibility. Customers must do a sample test before using our products to ensure the best processing conditions.
