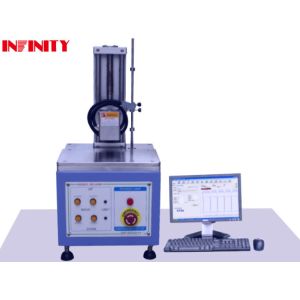

Keyboard Switches Button Compression Force Tester Touch Screen
Compression Test Machine
Model:S9001G
Specialties:
1. Button compression force tester have X, Y, Z axes, X,Y are to move the testing platform, so that it
can realize the multi-points compression test for the buttons force
test and the electronic products compression test; Z axis is
connected to the transducer to apply the test force, collect the
test force and control the compression time.
2. Key load force tester is controlled by professional software. It can set test force, test
time, test cycles and test speed. Besides, keystroke test machine
can collect test force, test time, test speed to generate the test
graph.
3. X,Y,Z axes are driven by servo motor from Japanese Panasonic to
drive; transmission by precise ballscrew which can achieve the low
noise and long durability.
4. Keypress compression loading tester has a controlled box, you can use control the machine by control
box.
5. This multifunctional keypress compressing test machine is floor type, compact structure, small footprint.
6. There have Chinese and English language interface for option and
switch the unit (N,Lb,gf,kgf) freely .
7. Testing method can be set, saved or called for use from the saving record, and you can print data or curve.
8. The life damping curve can be created, the test report can be
converted to Excel and PDF file format.
Specification:
| Products | Button compressing force test machine |
| Model | S9001G |
| Driving method of Z axis | Servo motor of Japanese Panasonic |
| Test range of load | 0~1000N(100kgf) |
| Range of driving (up and down) | 0~200mm |
| Resolution of load | 0.01N |
| Accuracy of load | ±0.5%F.S |
| Test range of displacement | 0~150mm |
| Resolution of displacement | 0.001mm |
| Accuracy of displacement | ±0.03mm |
| Range of test speed | 0.1~200mm/min |
| Driving method of X-Y axis | Servo motor from Panasonic |
| Control way | X:(right and left) Y:(forward and backward) |
| Driving range | X:0~460mm Y:0~300mm |
| Resolution of displacement | 0.002mm |
| Accuracy of displacement | ±0.05mm |
| Range of moving speed | 5~200mm/sec |
| Max size of specimen | W500xD260mmxH150mm |
| Weight | About 350kg |
| Size of machine | W1270xD750xH1890mm |
Application:
Servo control keypress compression force tester is controlled by X,Y,Z axis. Keystroke force distance test machine is suitable for all kinds of buttons, switches, metal shrapnel,
computer buttons, mobile phone buttons, car buttons, remote
controls, rubber etc. for doing load-stroke curve test, down force,
rebound force test and so on. For choosing suitable fixtures, force
stroke testing machine can do button force, compression testing, 3
points bending test, 4 points bending test and so on.
Keystroke compression force test machine is control by computer, it is easy to operate, storing test
materials automatically: load-stroke curve, life decline curve,
test result, moreover the test method can be preserved and
adjusted.
Product:
Testing Report:
Service:
For more information about keyboard compression force testing machines, please contact us.
Contacts: Amy Lin
Email: Amy.lin@infinity-machine.com
Tel/wechat/whatsapp: +86 173 1810 8837
