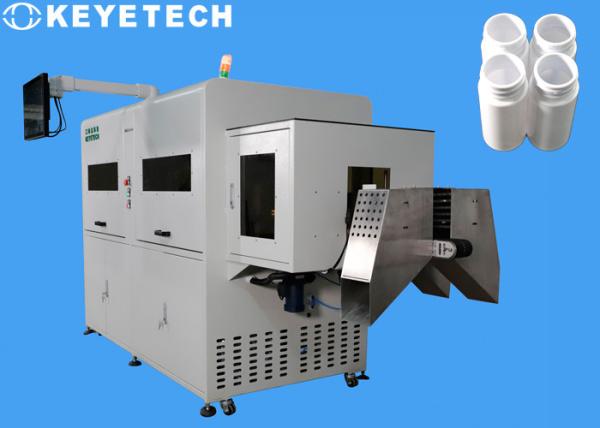

75ml-100ml Empty Bottle Inspection Machine with Latest AI Algorithm
Inspection Principle
According to the characteristics of the 75-100ml bottle, the number
of cameras, testing requirements and indicators are determined as
follows:
- Contamination:outside black spot(≥0.1mm),outside light
spot(≥0.2mm),stain on the base
- Thin walls: thin walls of the bottle body, thin walls of the base
(The defect size accounts for the target percentage of the bottle
body imaging ≤10%)
- Bottle lip deformed: out of round, uneven
thickness(deviation≥0.2mm)
- Defects on the outside bottle lip: defect size≥0.3mm
- Bottle body deformed(depressed): deformation area accounts for
percentage of bottle body circumference ≥15%, depression
depth≥1.5mm, depression size>15mm,
- Crease: Depth＞1mm
Equipment Overviews
| Model | Number of camera | Inspection scope | Inspection content | Detection precision | Accuracy | Capacity |
KVIS-SC10
| 1 set | Bottle lip area | Black spot, stain, impurity(different color) | ≥0.2mm | 99% | 120/min |
| flash, injection incomplete | ≥1.0mm | 99% |
| 4 sets | Upper area of bottle body (include outside of bottle lip) | Black spot, stain, impurity(different color) | ≥0.2mm | 99% |
| Bubble | ≥1.0mm | 99% |
| 4 sets | Lower area of bottle body | Black spot, stain, impurity(different color) | ≥0.2mm | 99% |
| Bubble | ≥1.0mm | 99% |
| 1 set | Outside of bottle base | Black spot, stain, impurity(different color) | ≥0.2mm | 99% |
| Injection point offset | ≥1.5mm | 99% |
Hole(through holes, no adhesion in the hole) | ≥1.0mm | 99% |
- Enabling and disabling the system detection function.
- Adjustment of the parameters and accuracy of detection indicators.
- Template sampling and storage, sample detection information storage
and recall.
- Camera calibration
- Display system real-time production information (qualified rate,
total output, speed, etc.). Browse, export and store historical
production information.
- l Perform authority management according to the login account (for
example, general operating users are prohibited from using
parameter adjustment permissions)
- Operation and adjustment of the mechanical parts of the system
(such as: air valve jet time adjustment, camera trigger time
adjustment)
- Additional functions added due to customer needs
Company profile
KEYETECH has always been committed to the application of artificial
intelligence in the field of vision technology, replacing human
eyes and brain decision with machine vision and AI reasoning
calculations, and integrating the quality detection and sorting to
industrial products in traditional manufacturing to make the
production more digitization , Intelligence, visualization, and
persistence. Also greatly improves the efficiency and accuracy of
industrial detection, and enhances the intelligent level of the
manufacturing industry.
** Our company have served many well-known enterprises such as
Coca-Cola, P&G,Unilever,ALPLA,C'estbon, Nongfu Spring, etc.,
and has won praise from many users.
After-sale service
The company has a complete technical service team and rapid
response mechanism, and has dedicated service specialists for each
customer, who can receive technical consultation and fault reports
from customers at any time. And to ensure rapid response to
customer emergencies, to ensure that customers receive satisfactory
service.During the epidemic or due to special reasons, when
after-sales engineers are unable to reach the site, the service
center can remotely adjust customer equipment for troubleshooting
and technical consultation.
