    Embedded POS Board LVDS EDP Display 2.4G/ 5G WIFI BT Embedded System Motherboard

    Ask Lasest Price
    Brand Name : JEWELLED
    Model Number : JLD-P06
    Price : $40-$60
    Payment Terms : T/T
    Supply Ability : 100K/month
    Delivery Time : 3-5 working days for sample
    • Product Details
    • Company Profile

    Embedded POS Board LVDS EDP Display 2.4G/ 5G WIFI BT Embedded System Motherboard

    Embedded POS Board LVDS EDP Display 2.4G/ 5G WIFI BT Embedded System Motherboard
    The Embedded System Motherboard adopts the Rockchip RK3288 quad core 64 bit processor, built on the Cortex-A17 architecture, with a maximum clock speed of up to 1.8GHz, combining computing power and energy efficiency advantages. This processor supports advanced instruction set architecture and can efficiently handle multitasking parallel operations. Whether it is data acquisition and analysis or complex control logic execution, it can maintain a smooth and stable running state, meeting the performance requirements of mid to high end embedded scenarios. At the same time, compared with processors of the same level, it has better power consumption performance, extending device life or reducing overall energy consumption.
    The Embedded System Motherboard supports two mainstream display interfaces, LVDS and EDP, and can flexibly interface with display modules of different specifications. The LVDS interface is suitable for industrial grade display devices due to its strong anti-interference ability and long transmission distance. The EDP interface supports high-definition display output with high bandwidth advantages, meeting the high-definition display requirements of intelligent interactive terminals.
    This Embedded System Motherboard integrates TTL and RS232 dual serial port configuration, suitable for different communication scenarios. TTL serial port is suitable for short distance data transmission between boards, simplifying internal connections of devices. The RS232 serial port supports long-distance communication with external devices such as upper computers and sensors through standard level conversion. The combination of the two interfaces allows the system board to easily integrate into various communication networks, ensuring the stability and compatibility of data transmission.
    Key Features
    SpecificationDetails
    Product NameEmbedded System Motherboard
    PCB Size100mm * 80mm
    Memory2G/4G LPDDR3 Option
    Power SupplyDC12V3A Input
    Wireless Connectivity2.4G/5G WiFi BT
    Touch Panel InterfaceI2C /USB Interface TP
    Technical Capabilities
    Equipped with Mali-T764 GPU, this motherboard supports advanced graphics display requirements and smoothly runs weighing data visualization interfaces, making it ideal for high-definition touch screen operations. The comprehensive interface selection includes RS485, USB, and Ethernet connectivity for versatile integration.
    Development & Compatibility
    Supports mainstream embedded operating systems including Linux and Android, with complete SDK development kits and technical documentation provided for secondary development and feature customization. Enables flexible integration of personalized functions such as weighing data statistical analysis, order management, and traceability systems.
    Application Scenarios
    • POS machine
    • Electronic Scale

    Product Visuals

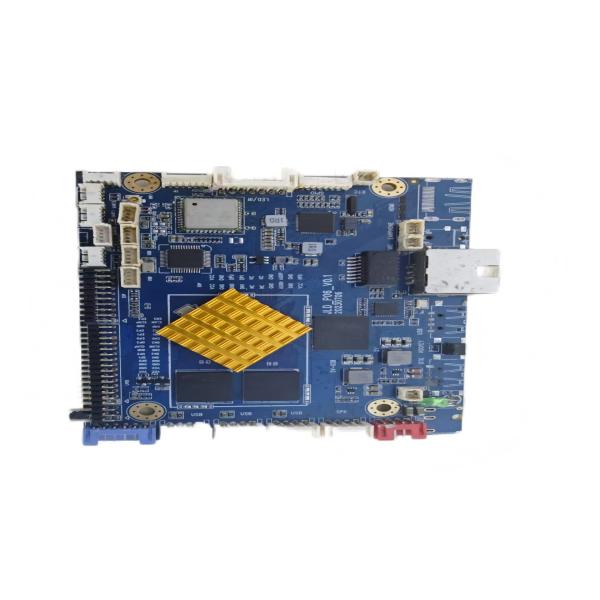

    ROCKCHIP RK3288 POS Board front view showing components and layout
    ROCKCHIP RK3288 POS Board side view displaying connectivity ports
    ROCKCHIP RK3288 POS Board technical schematic diagram
    ROCKCHIP RK3288 POS Board dimensional drawing with measurements
    Customer Feedback
    Customer review and feedback for ROCKCHIP RK3288 POS Board
    Frequently Asked Questions
    What is the brand name of the POS Motherboard product?
    The brand name is JEWELLED.
    What is the model number of the POS Motherboard product?
    The model number is JLD-P06.
    Where is the POS Motherboard product manufactured?
    The product is manufactured in China.
    What is the minimum order quantity for the POS Motherboard product?
    The minimum order quantity is 1pc.
    What are the payment terms for purchasing the POS Motherboard product?
    The payment terms are T/T.
