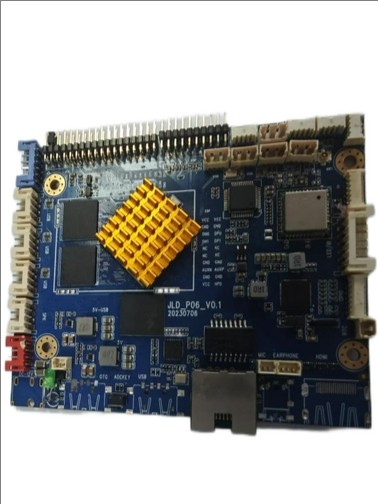

Embedded System Motherboard For KIOSK WIFI Internet Access With TTL
RS232 Serial Port
In the current era of rapid popularity of self-service terminals
(Kiosk), stable, reliable, and performance compatible embedded
system motherboards have become the core guarantee for device
operation. This embedded motherboard with Mali-T764 GPU as the
graphics processing core provides strong power for various
self-service terminals with flexible configuration selection and
precise scene adaptation. It is widely used in diverse scenarios
such as retail checkout, government inquiries, scenic spot
ticketing, medical registration, etc.
The motherboard performs outstandingly in graphics processing and
computing performance, equipped with Mali-T764 GPU with efficient
parallel computing capability, supporting complex graphics
rendering and high-definition display output. We offer two
specifications of 2G/4G LPDDR3, and the 4G memory version can
easily support multitasking, ensuring that the terminal does not
lag when processing user operations, data transmission, and
background interaction simultaneously. This motherboard offers
multiple options of 16G to 128G EMMC, which merchants can flexibly
match according to their terminal functional needs. Basic query
terminals can choose the 16G/32G version, while cash register or
ticketing terminals that need to store a large amount of local data
and transaction records can choose the 64G/128G large storage
version, balancing cost and practicality.
The motherboard adopts DC12V standard input and is compatible with
commonly used power modules in self-service terminals. It has
stable power supply and strong compatibility, effectively reducing
the risk of equipment failure caused by voltage fluctuations. At
the same time, the embedded architecture design gives it the
characteristics of small size and low power consumption, which can
be easily integrated into the limited space of various self-service
terminals, reducing the overall heat dissipation pressure of the
device and extending the continuous operation life of the terminal.
Display Interface Capabilities
Supporting both LVDS and EDP display interfaces, this motherboard
offers flexible connectivity for various display modules. The LVDS
interface provides industrial-grade reliability with strong
anti-interference capabilities and long transmission distances,
while the EDP interface delivers high-definition display output
with superior bandwidth for intelligent interactive terminals.
Communication Interfaces
Equipped with TTL and RS232 dual serial port configurations, this
board adapts to diverse communication requirements. The TTL serial
port facilitates short-distance board-to-board data transmission,
while the RS232 interface enables long-distance communication with
external devices including host computers and sensors through
standard level conversion.
Key Features & Specifications
| Specification | Details |
|---|
| Product Name | Embedded System Motherboard |
| PCB Size | 100mm * 80mm |
| Memory | 2G/4G LPDDR3 Option |
| Power Supply | DC12V3A Input |
| Wireless Connectivity | 2.4G/5G WiFi BT |
| Touch Panel Interface | I2C / USB Interface TP |
Technical Capabilities
Powered by Mali-T764 GPU, this motherboard supports advanced
graphics display requirements and smoothly renders weighing data
visualization interfaces, making it ideal for high-definition touch
screen operations. Comprehensive interface selection includes
RS485, USB, and Ethernet connectivity for versatile system
integration.
Development & Compatibility
Compatible with mainstream embedded operating systems including
Linux and Android, this motherboard comes with complete SDK
development kits and comprehensive technical documentation for
secondary development and feature customization. Enables flexible
integration of personalized functions such as weighing data
statistical analysis, order management, and traceability systems.
Application Scenarios
- POS Machines
- Electronic Scales
- KIOSK
Product Visuals
Customer Feedback
Frequently Asked Questions
What is the brand name of the POS Motherboard product?
The brand name is JEWELLED.
What is the model number of the POS Motherboard product?
The model number is JLD-P06.
Where is the POS Motherboard product manufactured?
The product is manufactured in China.
What is the minimum order quantity for the POS Motherboard product?
The minimum order quantity is 1pc.
What are the payment terms for purchasing the POS Motherboard
product?
The payment terms are T/T.
