Embedded Digital Signage Board Support LVDS 1920*1080 EDP 2560*1440
MIPI Format Video Output
Product Description:
This embedded digital signage is built with the balanced
performance RK3566 chip as its core, specifically designed for
commercial display, information dissemination, and other scenarios.
With stable hardware configuration and flexible application
capabilities, it has become the preferred device for digital
display in various industries. Its hardware architecture has been
precisely tuned to meet the requirements of high-definition content
presentation while also considering operational energy efficiency,
perfectly adapting to the usage characteristics of embedded
devices.
In terms of core processing, the device is equipped with RK3566
quad core 64 bit Cortex-A55 processor, which adopts advanced energy
efficiency optimization design to effectively control power
consumption while providing strong computing power. Whether it is
multitasking parallel processing or continuous stable operation of
high-definition videos, dynamic graphics and other content, it can
maintain smooth and seamless performance, providing solid computing
power support for complex display scenes and avoiding the image
delay problem caused by insufficient processor performance of
traditional devices.
Visually, the addition of ARM G52 2EE graphics processor endows the
device with excellent graphics rendering capabilities. It supports
decoding multiple high-definition video formats and high-resolution
display output, accurately restoring color details, making product
advertisements and promotional images more visually impactful.
Combined with high color gamut display panels, it can meet the
high-quality requirements of retail, catering and other industries
for display effects, helping to enhance brand image and information
transmission efficiency. A neural network processing unit with 1T
computing power enables it to have basic AI data processing
capabilities. By installing corresponding algorithms, intelligent
functions such as passenger flow statistics and crowd attribute
analysis can be achieved, providing businesses with accurate user
behavior data to assist in business decision-making.
As an embedded device, it has high integration and strong
stability, and can adapt to various complex environments such as
shopping malls, hotels, subway stations, etc. Support remote
centralized management function, staff can complete content updates
and device status monitoring through the backend, significantly
reducing operation and maintenance costs. From high-definition
advertisement playback to intelligent data feedback, this embedded
digital signage based on RK3566 chip is driving commercial display
into a new stage of efficient and intelligent with diverse
capabilities.
Features
| CPU | RK3568 quad-core 2.0GHZ | GPU | Mali-G52 |
| NPU | IT TOPS | OS | Android 11/Linux/Ubuntu/Debian |
| Memory | DDR4 2GB/4GB/8GB | EMMC | 16GB/32GB/64GB/128GB |
Touch Screen
| I2C interface/USB | Display Interface | LVDS,EDP,MIPI,HDMI |
| Serial port | 4 in total, types option,TTL(1-4),RS232(0-3),RS485(0-2) | USB 3.0 | support |
| Highlight | Android embedded board, Linux board, Android development board
|
Feature
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch
panel,
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for
option, BT
Strong anti-electromagnetic interference and Electromagnetic
compatibility.
Compitable for major mainstream manufacturers' POS application
software, stable performance.

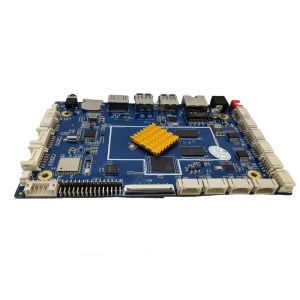

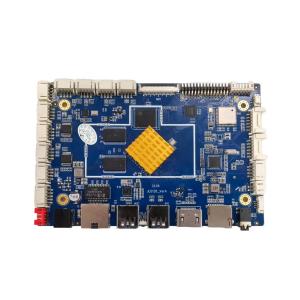

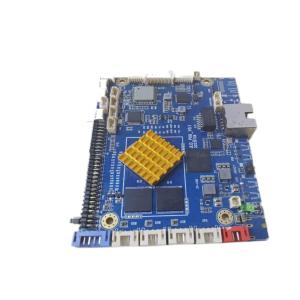

Product interface photos
Main parameters
Processor | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency
2.0GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI,HDMI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker
interface |
Ethernet | 10/100/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1
pce) OTG (1 pce) |
Serial port | 7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs),
RS485(0-2 pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 146mm*102mm*1.6mm |
Power supply | DC12V-24V input |
| Temperature | -20°- 80℃ |
Apply
self-service terminal, vending machine, queue system, etc
Product Superiority: stable performance rich interface.
Packing
1. At Buyer's Request
2. Inner, vacuum package
3.Outer, standard export carton
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We
quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal
order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
Any inquiry, please leave message to us!
