    Rockchip RK3568 PCBA Board Arm Edp Lvds AI Kiosk Touch PanelUbuntu 20.04 Embedded Motherboard

    Ask Lasest Price
    Brand Name : JEWELLED
    Model Number : JLD-P01
    Price : $50-$90
    Payment Terms : TT /Paypal
    Supply Ability : 100K/month
    Delivery Time : 3-5 working days for sample
    • Product Details
    • Company Profile

    Rockchip RK3568 PCBA Board Arm Edp Lvds AI Kiosk Touch PanelUbuntu 20.04 Embedded Motherboard

    Rockchip RK3568 PCBA Board Arm Edp Lvds AI Kiosk Touch PanelUbuntu 20.04 Embedded Motherboard
    Technical Specifications
    CPURK3568 quad-core 2.0GHz
    GPUMali-G52
    NPU1 TOPS
    Operating SystemAndroid 11/Linux/Ubuntu/Debian
    MemoryDDR4 2GB/4GB/8GB
    EMMC Storage16GB/32GB/64GB/128GB
    Touch Screen InterfaceI2C interface/USB
    Display InterfaceLVDS, EDP, MIPI, HDMI
    Serial Port5 (RS232 and TTL optional) + 1 TTL
    Cash Drawer InterfaceRJ11 6P6C
    Product Overview
    The RK3568 quad core processor installed on this motherboard is based on the Arm Cortex-A55 architecture, with a clock speed of up to 2.0GHz. Combined with the Mali-G52 2EE GPU, it can smoothly run complex graphics applications while meeting multitasking requirements.
    The motherboard supports stereo output and Dolby sound effects, and restores an immersive sound field through hardware decoding technology. Whether it is high-definition audio and video playback or voice interaction scenes, it can present a clear and transparent sound quality experience. In terms of interface configuration, the onboard 3.5mm standard headphone jack, 2P2.0 microphone interface, and 4P2.0 speaker interface meet the diverse connection needs of audio input and output, adapt to various audio devices such as speakers, headphones, and pickups, and simplify the audio module integration process of terminal products.
    This motherboard integrates 10/100/1000M Gigabit Ethernet interfaces to ensure high-speed and stable wired data transmission. Simultaneously supporting 2.4G/5G dual band WiFi and Bluetooth (BT) wireless connection, dual band WiFi can flexibly switch frequency bands to adapt to different environments, while Bluetooth function facilitates the connection of wireless keyboards, mice, sensors and other peripherals, achieving wireless intelligent control of devices and covering all aspects of wired and wireless connection needs.
    Key Features
    • Support for LVDS, MIPI, EDP, HDMI display interfaces and I2C touch panels
    • Rich interaction interfaces: USB, COM port, RJ11, cash drawer interface, Mini PCIE interface
    • Network connectivity: Gigabit Ethernet, Wireless WiFi 2.4G & 5G, Bluetooth
    • Strong anti-electromagnetic interference and electromagnetic compatibility
    • Compatible with major mainstream manufacturers' POS application software
    • Support for dual display output
    • Stable performance for continuous operation
    Interface Photos

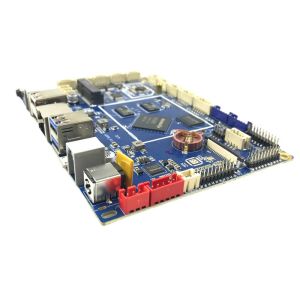

    Front view of RK3568 Kiosk Module Motherboard showing various connectors and interfaces

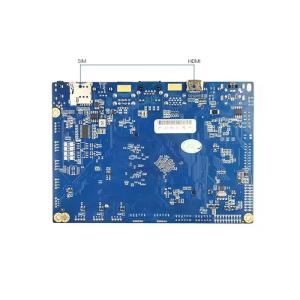

    Rear view of RK3568 Kiosk Module Motherboard showing component layout
    Detailed Specifications - JLD-P01 Model
    CPU ProcessorRK3568 Quad-core 64-bit Cortex-A55, maximum frequency 2.0GHz
    Graphics ProcessingARM G52 2EE support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
    Neural Processing1TOPS NPU
    Memory Options2G/4G/8G DDR4
    Storage Options16G-128G EMMC
    Display SupportLVDS, EDP, MIPI, HDMI
    Audio OutputStereo with Dolby sound effect support
    Audio Ports3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface
    Ethernet10/100/1000M
    Wireless Connectivity2.4G/5G WiFi with Bluetooth
    Operating SystemsAndroid 11/Ubuntu 20.04/Debian 10
    Touch Panel InterfaceI2C / USB interface
    Memory Card SupportTF-CARD
    USB InterfacesBuilt-in USB 2.0 (4), external USB 2.0 (2), USB 3.0 (1), OTG (1)
    Serial Ports7 total: TTL (1-7), RS232 (0-6), RS485 (0-2)
    RTC FunctionSupport power-off clock memory, automatic power on/off
    Camera SupportUSB camera
    PCB Dimensions146mm × 102mm × 1.6mm
    Power SupplyDC 12V-24V input
    Operating Temperature-20°C to 80°C

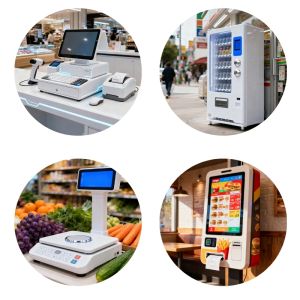

    Application Areas
    • POS machines and payment terminals
    • Electronic scales and weighing systems
    • Self-service kiosks and information terminals
    RK3568 motherboard implementation in commercial POS system
    Detailed component layout of JLD-P01 Android motherboard
    Packaging Options
    • Custom packaging available per buyer requirements
    • Inner vacuum packaging for protection
    • Outer standard export carton
    Customer Feedback
    Customer review and rating for RK3568 motherboard product
    Frequently Asked Questions
    Q1. Can I have a sample order for PCBA motherboard?
    A: Yes, we welcome sample orders to test and check quality with your equipment. Customized development PCBA are also available.
    Q2. What about the lead time?
    A: Samples require 3-5 days, mass production takes 1-2 weeks for orders above minimum quantity.
    Q3. Do you have any MOQ limit for trial order?
    A: Low MOQ available - 1pc for sample checking.
    Q4. How do you ship the goods and how long does it take to arrive?
    A: We typically ship via DHL, UPS, FedEx or TNT, arriving in 3-5 days. Airline and sea shipping also available.
    Q5. How to proceed with an order for PCBA motherboard?
    A: First, share your requirements or application. Second, we provide quotation based on your needs. Third, customer confirms samples and places deposit. Fourth, we arrange production.
    Q6. Is it OK to print my logo on PCBA motherboard product?
    A: Yes. Please inform us before production and confirm the design based on our sample.
    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 1-3 years warranty on our products.
