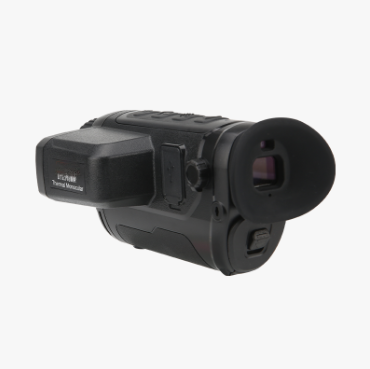

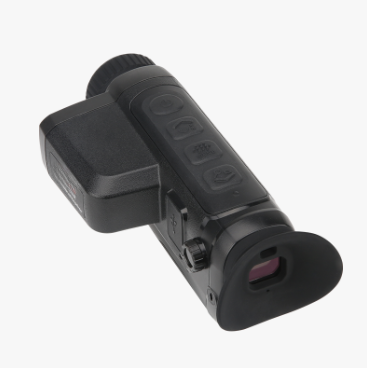

    CDI-313MR Laser Ranging Infrared Thermal Imaging Telescope

    Ask Lasest Price
    Brand Name : CDI
    Model Number : CDI-313MR
    Certification : UL,CMC,ETL,RoHS,GS,CE,3C
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    CDI-313MR Laser Ranging Infrared Thermal Imaging Telescope

    CDI-313MR Laser Ranging Infrared Thermal Imaging Telescope


    1. Product Overview


    The CDI-313MR/CDI-318MR/CDI-325MR is a thermal imaging telescope product that combines infrared thermal imaging and long-distance detection. It features lightweight portability, simple operation, and durability, while integrating a high-precision laser ranging module. It can precisely detect targets within 1200 meters. With a 400×300 infrared pixel clear display, probability ranging + laser indication + hotspot tracking + electronic compass, it helps you quickly and accurately locate the target. In addition to real-time observation, it can also take photos and videos for storage, meeting your needs for recording the observation process. It can also be connected to an external screen for video output and connected to a mobile phone APP for Wi-Fi output for observation. The usage methods are diverse, making observation no longer "single" and meeting the requirements of usage.


    2. Product Features


    (1) Infrared resolution: 400×300

    (2) Lens sizes: CDI-313MR (13mm), CDI-318MR (18mm), CDI-325MR (25mm)

    (3) Frame rate: 50Hz

    (4) NETD: <25mk

    (5) Laser ranging: 10~1200m

    (6) Focusing method: Manual focusing

    (7) Photo & video recording

    (8) Digital zoom: 1X, 2X, 4X, 8X

    (9) Probability ranging + laser pointer + hot spot tracking + electronic compass

    (10) Type-C charging + removable rechargeable battery + UT-Z040 charging dock

    (11) Support external screen video output / mobile APP real-time video transmission

    (12) IP67 / 2-meter drop resistance


    3. Main Technical Data


    ModelCDI-313MRCDI-318MRCDI-325MR
    Detector TypeUncooled Vanadium Oxide
    Infrared Resolution400x300
    Infrared Response Band8-14um
    Pixel Size12um
    Frame Rate50Hz
    Thermal Sensitivity/NETD<25mk
    Focusing MethodManual Focus
    Lens Focal Length13mm18mm25mm
    ApertureF1.0
    FOV20°×15°14.6°×11°10.5°×7.9°
    Digital Zoom1x,2x,4x,8x
    Color PalettesIron Red, Rainbow, Red Hot, Black Hot, White Hot
    Calibration ModeBackground Calibration, Shutter Calibration, Auto Calibration
    Display Screen0.39"OLED
    Display Resolution1024x768
    Focusing MethodManual Focus
    Laser PointerYes (Wavelength 650nm)
    Laser RangingYes (Wavelength 900-908nm)
    Measurement Range10-1200m
    Measurement Accuracy±1m;(10-100m) ± (1+L*0.25%) m;(101-1200m, L = Target Distance)
    StorageInternal Storage, 16GB
    Data InterfaceType-C Interface (Chargeable, Data Access, Video Output)
    Image FormatPNG
    Video FormatMP4
    Photo & Video Recording
    Multimedia Browsing
    Screen Brightness Adjustment
    Electronic Compass
    Probability Ranging
    Hot Spot Tracking
    Picture-in-Picture
    Mobile APPiOS,Android
    WiFiSupports APP Screen Mirroring
    EyepieceMonocular Display, Diopter Adjustable -5~+3
    Brightness Adjustment5 Levels Adjustable
    Contrast Adjustment5 Levels Adjustable
    LanguageSimplified Chinese, English
    Battery Type3250mAh Removable Rechargeable Lithium Battery (UT-M21)
    Auto Power OffOFF/5min/15min/50min, Default OFF
    Usage Time>3 Hours
    Battery Operating Time≤3 Hours
    Charging Voltage/Current5V/2A
    Operating Temperature-10℃~50℃(32℉~122℉)
    Storage Temperature20℃~60℃(-4℉~140℉), <85%RH (Non-condensing)
    Protection RatingIP67, 2m Drop Resistance
    CertificationsUL Battery Certification, RoHS Certification, CE Certification


    4. Application


    Ocular observation


    External screen video output


    Real-time video on mobile APP
