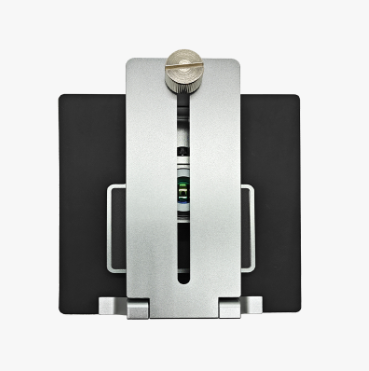

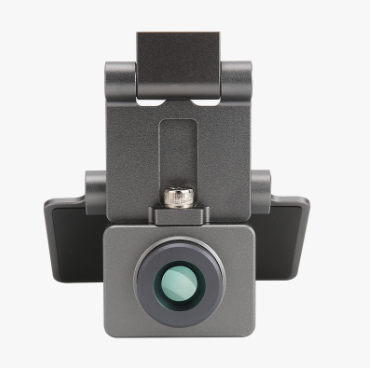

CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

    Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers

    Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers
    • Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers
    • Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers
    • Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers
    • Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers
    • Buy cheap CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument from wholesalers

    CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

    Ask Lasest Price
    Brand Name : CDI
    Model Number : CDI-920A
    Certification : UL,CMC,ETL,RoHS,GS,CE,3C
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument

    CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument


    1. Product Overview


    The CDI-920A Infrared Thermal Imaging Analysis Rapid Diagnostic Instrument is a product that applies infrared thermal imaging technology to the field of circuit board maintenance. This product can assist engineers in quickly locating abnormal faults in circuit boards, such as short circuits and leakage, thereby improving the efficiency of research and maintenance.


    2. Product Features


    (1) Temperature measurement range: -15℃~600℃

    (2) Infrared resolution: 260×200

    (3) Equipped with a macro lens

    (4) Frame rate: 25Hz

    (5) Focusing method: Fixed focus

    (6) Temperature curve recording + double-plate comparison/2D/3D

    (7) Six adjustable color palettes (Iron Red, Rainbow, Red Hot, Black Hot, White Hot, Cold Blue)

    (8) Real-time images can be photographed and recorded

    (9) Central point temperature measurement, high and low temperature tracking/over-temperature alarm

    (10) Supported systems: Windows (Win10 or Win11 recommended) and Android (Android 7.0 and above)


    3. Main Technical Data


    ModelCDI-920A
    Detector TypeVanadium Oxide Uncooled Infrared Focal Plane Detector
    Infrared Resolution260x200
    Thermal Sensitivity (NETD)<50mK @25℃
    Frame Rate25Hz
    Temperature Measurement Range-15°C ~ +600°C (5°F ~ +1112°F)
    Temperature Measurement Accuracy±2℃ or ±2%, whichever is larger
    Temperature Measurement Distance100mm - 150mm, can observe at 30mm with teleconverter lens
    Device InterfaceUSB Type C
    Field of View56°x42°
    Macro Lens
    Focusing MethodFixed Focus
    Input VoltageDC 5V
    Storage Environment Temperature-20°C ~ 60°C
    Working Environment Temperature0°C ~ 50°C
    Humidity95% Relative Humidity
    APP SoftwareSupported
    PC SoftwareSupported
    Supported SystemsAndroid 7.0 and above, Windows 10 and above
    Placement on Table BoardSupported
    Image Storage FormatJPG
    Color Palette6 types (Iron Red, Rainbow, Red Hot, Black Hot, White Hot, Cold Blue)
    Video Storage FormatMP4
    Cold/Hot Spot Tracking / High and Low Temperature AlarmSupported
    Dual-board Product Comparison 2D/3D SwitchingSupported
    Analysis ObjectsPoints, Lines, Regions
    IsothermSupported


    4. Application
