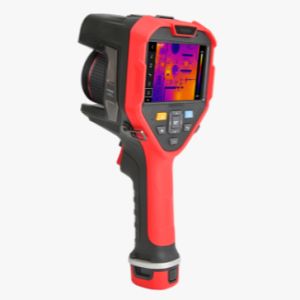

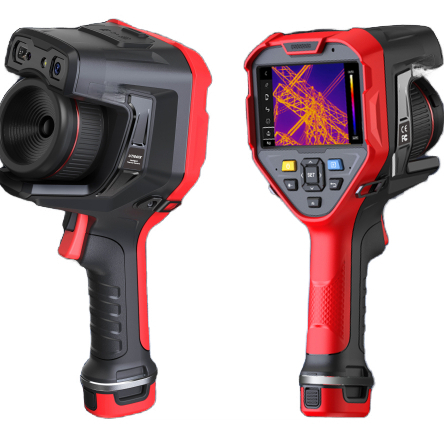

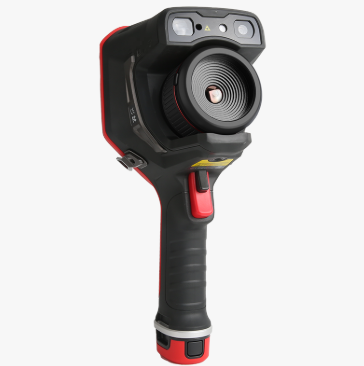

CDI-640X Intelligent Infrared Thermal Imaging Camera
1. Product Overview
The CDI-640X is a handheld infrared thermal imager featuring 640×512 pixels and super-resolution capabilities, which can provide clearer infrared images and higher temperature measurement accuracy. Multiple focusing methods are available, enabling clearer details to be seen on the excellent imaging. The wide temperature measurement range of -20 to 2200℃ meets the requirements of more scenarios. It can also be equipped with various lenses to meet the needs of more usage scenarios. In terms of the temperature measurement function, it supports custom addition of points, lines, area analysis objects, and isothermal line setting functions, allowing you to have a clear understanding of the temperature of the measured object. In addition to real-time observation and analysis, it can also take photos and record videos. Professional PC analysis software and mobile APP are provided for free, enabling your work not only to be completed on-site but also to conduct post-analysis on the stored images and generate reports.
2. Product Features
(1) Infrared Resolution: 640×512
(2) Super resolution function: 1280*1024
(3) Temperature measurement range: -20~1200℃
(4) High precision temperature measurement: 0℃~120℃, temperature accuracy ±1.0℃ or 1.0%; temperature accuracy ±1.5℃ or 1.5% for other ranges
(5) Optional wide-angle, long-focus, medium-long-focus, short-focus, and high-temperature lenses (extending up to 2200℃)
(6) 1300w visible light lens
(7) 5-inch touch screen for one-touch access to functions
(8) Full-screen display
(9) Instrument linkage: Supports Bluetooth-connected intelligent instruments for real-time value display
(10) Multiple focusing modes: Automatic, manual, semi-automatic, laser, contrast
(11) Laser ranging function: 0.1-50m
(12) Six image modes: Infrared image, visible light image, fusion, T-Mix, picture-in-picture, dual-channel
(13) With dual-light video freezing, freezing and framing, timed shooting, and timed recording functions
3. Main Technical Data
| Model |
CDI-640X |
| Detector Type |
Uncooled Infrared Detector |
| Infrared Resolution |
640 x 512 |
| Infrared Super Resolution |
1280 x 1024 |
| Infrared Response Band |
7.5～14μm |
| Pixel Size |
12μm |
| Frame Rate |
30Hz |
| Thermal Sensitivity/NETD |
<35mK |
| Installation Method |
Replaceable Lens |
| Replaceable Lens |
Manual Focus/Image Contrast Focus/Laser Focus/Touch Focus/Continuous Focus |
| Focusing Time |
<2s |
| Lens Recognition |
√ |
| Intelligent Calibration |
√ |
| Lens Type |
Wide-angle Lens 9.6mm |
| Thermal Imaging Lens Focal Length |
9.6mm |
| Field of View |
46°×37° |
| Minimum Imaging Distance |
0.1m |
| Aperture |
1 |
| Spatial Resolution/IFOV |
>1.28mard |
| Temperature Measurement Range |
Conventional Lens: -20℃～1200℃ Ultra-high Temperature Lens: 1000℃～2000℃ |
| Temperature Measurement Accuracy |
±2℃/±2% (whichever is larger, -20℃～1200℃, normal temperature 25℃, conventional lens) ±2% (1000℃～2000℃, normal temperature 25℃, ultra-high temperature lens) |
| Advanced Temperature Measurement Accuracy |
±1℃/±1% (whichever is larger, 0℃～120℃, normal temperature 25℃, standard lens) |
| Temperature Measurement Resolution |
0.1℃ |
| Recommended Temperature Measurement Distance |
0.5m |
| Temperature Range Mode |
Automatic/Manual/One-key Touch Screen |
| Regional Temperature Measurement Correction |
Supports Regional Emissivity Correction |
| Display Screen |
5' IPS LCD Touch Screen |
| Display Resolution |
1280x 720 |
| Visible Light Resolution |
13MP |
| Color Palette |
White Hot, Black Hot, Red Hot, Iron Red, Rainbow, High Contrast Rainbow, Lava; Customizable |
| Color Palette Inversion |
√ |
| Image Mode |
Thermal Imaging, Visible Light, Fusion, T-Mix, Picture-in-Picture, Dual-channel |
| Digital Zoom |
√ |
| IR Edge |
√ |
| TWB |
√ |
| Video Format |
MP4/Uir |
| Image Format |
JPG |
| Laser Ranging |
0.05～50m (Class 2 Laser, Red) |
| Laser Indication |
√ |
| Data Interface |
Type-C USB, Micro HDMI |
| Storage |
Internal UFS 128GB/SD Card Expandable |
| Photo Taking |
√ |
| QR Code Scanning |
√ |
| Full Radiation Thermal Imaging Video Stream |
√ |
| Video Recording |
√ |
| Illuminating Lamp |
√ |
| Voice/Text Annotation |
√ |
| Temperature Measurement Unit |
℃/℉ |
| Voice Control |
√ |
| Temperature Measurement Display |
3 Temperature Measurement Points (Center Point, Maximum Temperature, Minimum Temperature) |
| OTA Upgrade |
√ |
| Temperature Analysis |
Supports Point/Line/Circle/Rectangle Analysis Tools, Up to 16 |
| Bluetooth |
√ |
| Isotherm |
Automatic Isotherm/Touch Isotherm/Interval Isotherm/Upper Isotherm/Lower Isotherm |
| FTP Browsing |
√ |
| High and Low Temperature Tracking |
√ |
| WiFi Photo Download |
√ |
| High and Low Temperature Alarm |
Sound Alarm, Image Alarm |
| WiFi Video Live Streaming |
√ |
| Color Alarm |
Supported, Above Temperature, Below Temperature and Between Temperatures |
| Mobile APP |
iOS, Android |
| Temperature Measurement Parameters |
Emissivity, Reflection Temperature, Ambient Temperature, Relative Humidity, Target Distance, Dew Point Temperature, Atmospheric Temperature, Atmospheric Transmittance |
| Battery Type |
7.4V, 5000mAh Lithium Battery, Replaceable/Rechargeable |
| PC Analysis Software |
√ |
| Battery Working Time |
>5h (Actual working time may vary depending on specific settings and usage) |
| PC Screen Projection |
√ |
| Charging System |
Type-C Direct Charge/Battery Pack Independent Charge |
| HDMI Display Expansion |
√ |
| Charging Time |
2.5h to 90% Charge (Shutdown Charging or Battery Pack Independent Charging) |
| Language |
Simplified Chinese, English |
| Working Temperature |
-20℃～55℃ |
| Charging Voltage/Current |
5V/3A/9V/3A, Supports PD3.0 |
| Storage Temperature |
-40℃～60℃ |
| Smart meter |
√ |
| Working Humidity |
10%～95%RH, Non-condensing |
| Full-screen Display |
√ |
| Protection Grade |
IP54 |
| Screen Brightness Adjustment |
√ |
| Drop Protection |
2m |
