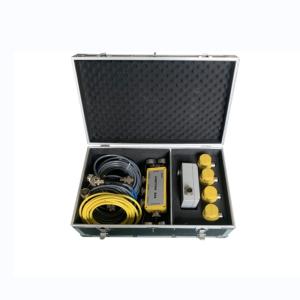

Convenient and Simple Averaging Leveling Beam 8008 with Parameter
Setting Interface
Scope of application:
It is an early averaging leveling beam instrument, suitable for various imported and domestic brands of
low-end paver, and used for automatic leveling control in the
construction of supporting paver.
Functions and Features:

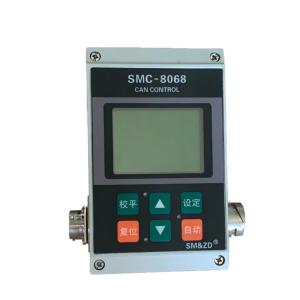

1. The Chinese and English working interface of the controller can
be switched, with intuitive image and convenient operation;
2. The controller has a parameter setting interface, which is
convenient and simple to adjust the parameters, and can give full
play to the excellent performance of the paver, making the
construction intelligent and reliable.
3. The controller has short-circuit protection and automatic sensor
recognition function.
4. The single-probe ultrasonic sensor collects measurement data
multiple times, and the design of the compensation rod can
eliminate the shortcomings of ultrasonic measurement, and the
measurement is accurate.
5. Simple design, convenient and flexible operation, affordable
price. Based on CAN bus design, it can always be used in conjunction with
instruments based on CAN bus design.
Technical Parameters:
| Working voltage | 10V~30VDC |
| Communication type | CANbus |
| Controller output current | 5A (with over-current protection function) |
| Controller output signal | NPN, PNP can be set |
| Output frequency | 3HZ |
| Ultrasonic measurement range | 25cm～100cm |
| Resolution | 0.2mm |
| Ultrasonic probe frequency | 200KHZ |
| Working temperature | -20～85℃ |
Construction case:
