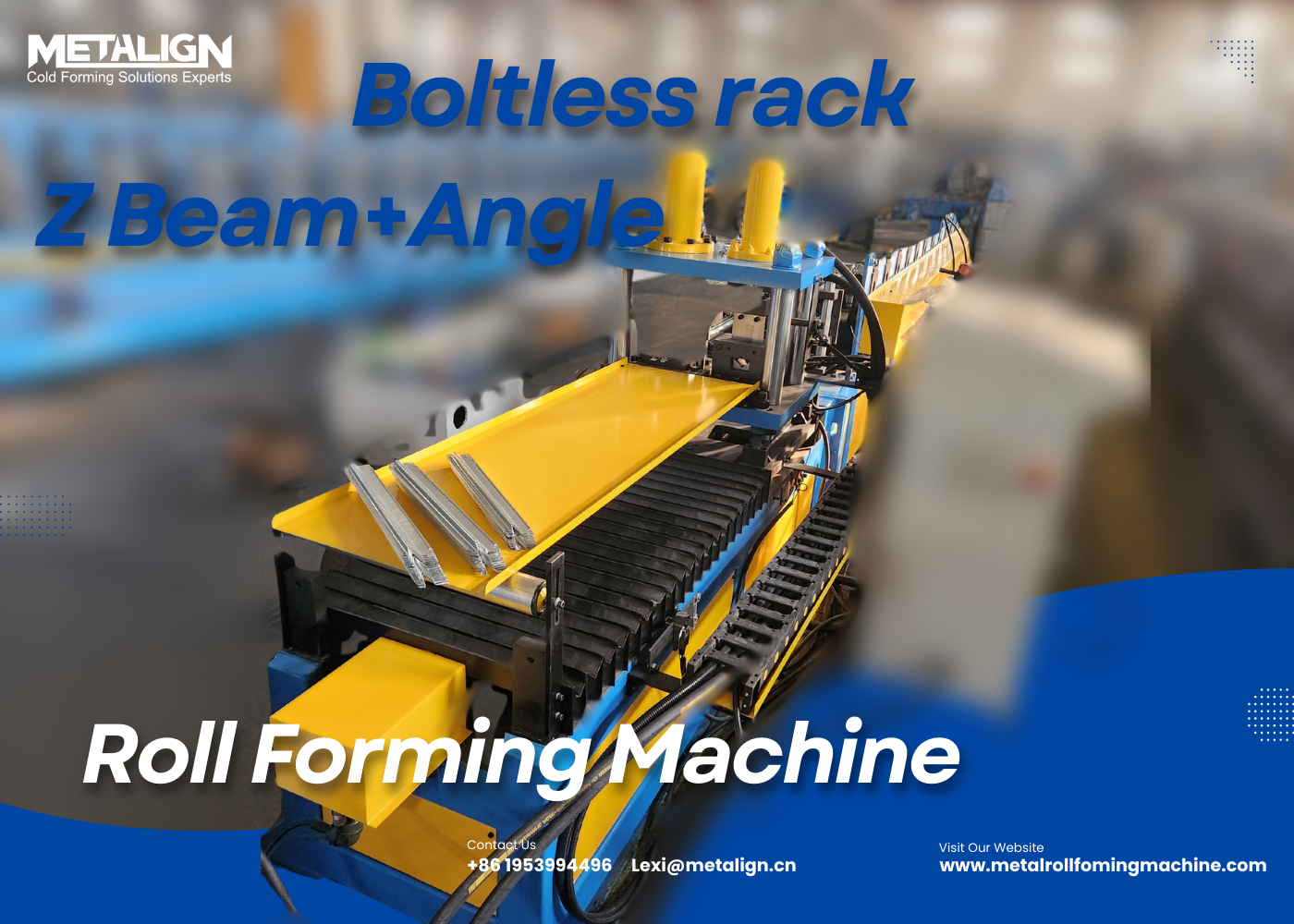

Clean Cut High Speed Rack Z Beam Rack Roll Forming Machine

1. Overview

The Rack Z Beam Roll Forming Machine is designed for manufacturing heavy-duty Z-shaped beams used in warehouse racking systems and industrial storage structures. It processes galvanized or cold-rolled steel coils with a thickness range of 1.5–2.5 mm. The production line includes a hydraulic decoiler, precision leveling, punching, roll forming, and automatic cutting system. Equipped with gearbox drive and hardened rollers, the machine ensures accurate forming, high strength, and smooth surface finish. With PLC control and user-friendly operation, it provides stable performance and consistent quality, making it an ideal solution for racking manufacturers seeking efficient and reliable beam production.

2. Technical Parameters

2.1 Decoiler
Structure	Stand-up structure
Working Form	Manual, motorized, or hydraulic
Loading Capacity	5T
Coil Width	customizable
Inner Diameter	Φ450 – Φ550 mm
Out Diameter	1500 mm
Model	DC-MU2

2.2 Optional Upgrade: Loading Car
	The loading car lifts coils smoothly and positions them accurately on the decoiler, reducing labor, improving safety, and ensuring faster, more stable coil changeovers.

2.3 Guiding Device With Pre-Cut Broaching Shear
Guiding Roller	Adujust the coil feeding width
Pre-cut Broaching Shear	Cut the steel coil before roll forming
Digital Display	See the feeding width directly

2.4 Roll Forming Machine
Working Speed	Around 20 m/min
Structure	Wall panel type. Optional: Cast-iron stands or guide pillar
Driving System	Chain system. Optional: Gearbox
No. of Forming Stations	18 stands
Shaft Diameter	70mm solid shaft
Motor Power	5.5 Kw
Roller Material	45# steel polished and chromed HRC58-62°
Shaft Material	High grade 45# steel polished(CNC lathe)
Steel Coil Material	PPGI or GI
Steel Coil Thickness	0.25-0.8mm

2.5 Optional Upgrade: Cover
Mounted On The Inside: No Cover Required	Solid Cover For Chain	Mesh Safety Cover

2.6 Cutter
Common Power Type	Hydraulic. Optional: motor type.
Hydraulic Power	4-5.5Kw, customizable
Blade Material	Cr12 Mov
Hardness	With quenched treatment HRC 58 – 62°

2.8 Hydraulic Power Unit (HPU)
Motor Power	5.5Kw
Oil Required	N32 or N46 hydraulic oil is available
Design	The hydraulic station has a fan cooling system
Optional	It can be installed on or inside the roll former to save space

3. Production Line Components

4. Customization Options

This production line can be customized for different box beam sizes, including variable heights and widths. Options include automatic punching units for step beams, servo flying shear for high-speed cutting, quick-change cassette system for profile adjustments, and upgraded hydraulic lock seam systems for heavy load requirements.
