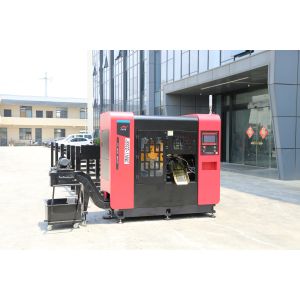

JSSCD-80NC/X CNC High Speed Circular Saw Machine(Angled-Push)
Description
Within the demanding landscape of metal fabrication—where
uncompromising precision and maximum output capacity are
critical—this sophisticated CNC high-speed circular saw provides
substantial operational gains. Engineered to deliver accurate
angled cuts across an extensive range of materials, its defining
technological advancement is a purpose-engineered 15-degree descending cut path. This innovation, integrated with swift processing cycles,
intelligent automation systems, exceptional dimensional fidelity,
and sustainable design principles, establishes a robust foundation
for heightened productivity in contemporary industrial operations.
Capable of efficiently machining varied metal stock including
tubing and structural sections, the system's optimized architecture
significantly boosts processing versatility. It minimizes the
necessity for frequent fixture adjustments triggered by shifts in
material dimensions or cross-sectional profiles, enabling smooth
adaptation to evolving cutting demands.
The cornerstone of its technical superiority is the 15-degree downward cutting mechanism. This specific geometry strategically manages cutting forces,
substantially reducing impact loads transmitted to the workpiece.
Consequently, it produces uniformly smooth, planar cut
faces—essential for applications requiring premium edge integrity.

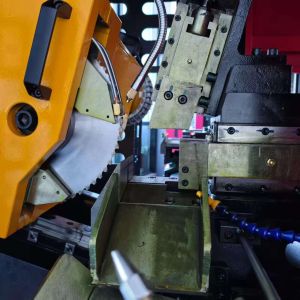

Dependable workpiece security is achieved through a synergistic
high-output drive system and a robust clamping fixture.
Precision-engineered to guarantee part immobilization, even amidst
the high dynamic stresses inherent in rapid cutting operations,
this stability is fundamental for achieving consistent, repeatable
machining outcomes.
Operational command resides with an advanced intelligent control
unit. This system meticulously governs critical parameters—such as
feed velocity and cutting angles—ensuring rapid and precise
execution strictly aligned with programmed instructions. The
integrated high-accuracy CNC platform incorporates an intuitive
Human-Machine Interface (HMI). Operators can easily pre-set cutting
sequences and store multiple operational protocols, enabling fully
automated workflows. This substantially decreases manual input
requirements and concurrently minimizes potential processing
inaccuracies.
To further enhance high-volume production efficiency, an optional
automated material handling module can be integrated. This
facilitates uninterrupted batch processing, maximizing equipment
utilization and extending productive uptime, thereby directly
supporting ambitious production objectives.
Specifications:
| Model | Unit | JSSCD-80NC/X |
| Mainframe dimensions | mm | 2250*1790*1760 |
| Bar & round pipe | mm | 15-80 |
| Angle bar & square bar | mm | 15-68 |
| Saw blade size | mm | φ300*2.0*φ32 |
| Pin holes and hole diameters | mm | 4*φ11*63 φ32 |
| Spindle motor power | KW | 7.5(4P) |
| Spindle speed | rpm | 20-168 |
| Feeding servo motor power | KW | 1.5 |
| Feed servo motor power | KW | 1 |
| Material removal length at the front end | mm | 10-99 |
| Single feeding length(repeatable) | mm | 6-860 |
| Hydraulic drive motor power | KW | 1.5(4p) |
| Rated pressure of the hydraulic system | mpa | 5.5 |
| Hydraulic oil capacity | L | 70 |
| Cut off feed mode |
| AC servo motor & ball screw / 15° cutting-in |
| Main clamping method |
| Hydraulic type / one set each for horizontal and 15° |
| Saw blade debris removal device |
| Passive/active circular wire brush (optional) |
| Gear backlash compensation device |
| Hollow external rotating magnetic powder brake |
| Feeding drive mode |
| AC servo motor & ball screw |
| Feeding clamp method |
| Hydraulic type/Horizontal clamping |
| Residual material length at the rear end | mm | 90&a(a represents the length less than one cut-off workpiece) |
| Self-lubrication oil system |
| Timed and quantitative forced oil supply |
| Micro-lubrication system for cutting |
| Quasi-dry intermittent oil supply |
| Material separating device |
| Pneumatic reciprocating |
| Long material receiving device |
| Optional |
| Blade swing anti-vibration device |
| Tungsten carbide parallel block |
This equipment adeptly reconciles the dual demands of high-volume
manufacturing and exacting machining quality. It stands as a
strategic competitive advantage for enterprises targeting elevated
throughput alongside superior surface finish, delivering unwavering
cutting reliability. Through the synergy of intelligent control and
high-velocity cutting, it demonstrably:
Elevates Material Yield: Minimizing scrap through optimized cutting strategies.
Accelerates Production Cycles: Reducing processing time per component.
Streamlines Delivery Timelines: Enabling faster order fulfillment.
Enhances Labor Efficiency: Freeing skilled personnel for higher-value tasks.
For metal fabricators committed to market leadership, this machine
offers a premier solution for pursuing sustainable growth and
modernizing production capabilities, catalyzing significant
advancements in operational performance.
